General Pump

General Emperor Pump Right Shaft 4.76 GPM, 3000 PSI Part Number PEHT2012SR

General Emperor Pump Right Shaft 4.76 GPM, 3000 PSI Part Number PEHT2012SR

$706.28
$1,416.56 $706.28
Sale Sold out

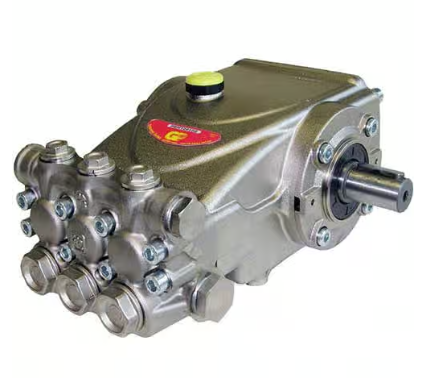

The General Pump Platinum Series PEHT2012SR Emperor right shaft plunger pump is designed for rigorous, long term use at your commercial car wash. This pump features a nickel plated, forged stainless steel manifold and ceramic plungers, all designed to handle high temperatures, pressures, and chemicals with ease. This pump is for use with a maximum pressure of 3,000 PSI and can pump 4.76 gallons per minute. This General Pump Platinum Emperor pump's patented high tech packings include a dynamic low-pressure seal retainer, low-pressure seal, intermediate ring, and high-pressure seal.

Dimensions: 10.4" x 8.8" x 5.4"

Features:

  • Dual lip oil seal for better oil and water sealing
  • Nickel-plated crankcase and forged stainless steel manifold for optimal corrosion resistance
  • Increased sliding surface of the dual diameter plunger guide provides stability, reduced friction, and reduced wear
  • Optimized outlet valves
  • Special seals for car wash applications up to 185 degrees F
  • Plunger fastening system eliminates the risk of pressure build-up
  • Large diameter sight glass
  • Oversized connecting rods and large oil capacity for better cooling and lubrication
  • Oversized premium tapered roller bearings
  • Dust protection chamber between crankcase and manifold
  • Made in Italy
Specifications:
  • Max Flow: 4.76 GPM
  • Max Pressure: 3000 PSI
  • Max Inlet Pressure: 125 PSI
  • RPM: 1750
  • Stroke: 12mm
  • Bore: 20mm
  • Shaft Diameter: 24mm
  • Oil Capacity: 22 oz.
  • Inlet: 1/2” - 14 BSP-F
  • Outlet: 3/8” - 19 BSP-F
  • Horsepower: 9.8
  • Max Temp: 185 degrees F
  • Weight: 21 lbs
