General Pump 66 Series Stainless Steel High Flow Triplex Pump 12 GPM, 3000 PSI Part Number TSF2421SS

High-Volume 3000 PSI Pump

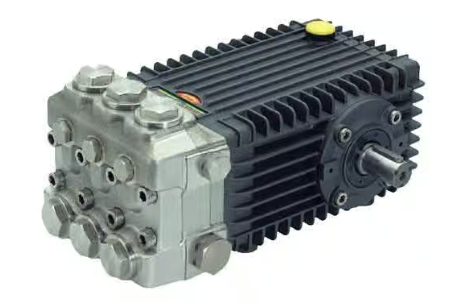

The General Pump TSF2421SS 66 Series triplex pump is a high-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals. Features ceramic plungers and high-tech packings. Nickel-plated forged brass manifold features lifetime warranty.  Ideal for use in car washing, reverse osmosis, misting, and for use in industrial plant systems where hot water is required.

Features:

• Patent pending high tech packings
  • dynamic low-pressure seal retainer
  • superior low-pressure seal
  • innovative intermediate ring
  • superior high pressure seal
• New ceramic plunger design improves thermal shock resistance
• 316 Stainless Steel wetted parts, inlet/outlet valve plugs, and forged manifold with exclusive lifetime warranty
• Patent-pending inlet/outlet valve cage

• Heavy-duty tapered roller bearings
• Specifically designed to handle rigorous duty cycles, high temperatures, and chemicals

Specifications

• Max Volume: 12.0 GPM
• Max Discharge Pressure: 3000 PSI
• Max Pump Speed: 1750 RPM

• Max Temperature: 185º F
• Inlet Port: 3/4"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
