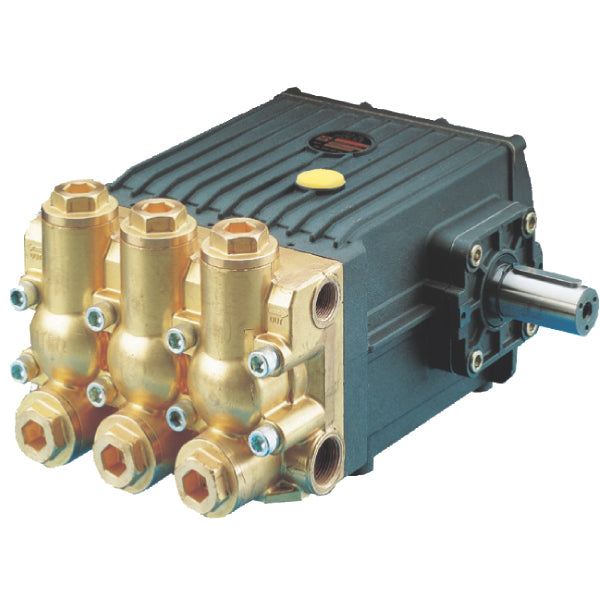

General Pump 69 Series Car Wash Right Solid Shaft Triplex Plunger Pump - 12.0 GPM, 1000 PSI Part Number CW1012

The preferred pump frame in the two-gun prep conveyor and tunnel car wash industry, this model features a forged brass manifold, large-capacity, die-cast, anodized aluminum oil-bath crankcase, oversized connecting rods, a heavy-duty tapered roller bearing, and unitized stainless steel inlet and discharge valves. Solid ceramic plungers with continuously lubricated packings keep the system running smoothly and efficiently.

• Max Flow: 12 GPM
• Max Pressure: 1000 PSI
• Max Speed:  900 RPM
• Bore: 30 mm
• Stroke: 24 mm
• Max Fluid Temp: 165 degrees F
• Crankcase Capacity: 50.7 oz.
• Inlet: 3/4"
• Outlet: 3/8"
• Shaft Diameter: 35 mm
