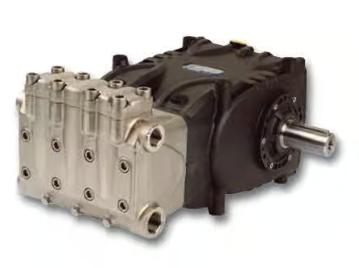

General Pump Belt Drive HF Series Industrial Pump - 15 GPM, 5800 PSI Part Number HF25A
General Pump Belt Drive HF Series Industrial Pump - 15 GPM, 5800 PSI Part Number HF25A
Regular price
$6,347.54
Regular price
$12,699.08
Sale price
$6,347.54
Unit price
/
per
This HF series pump is made up of stainless steel valves with solid ceramic plungers, cast iron guide, nickel treated and taper roller bearings. It has low-high pressure packing design with an integrated cooling system.
Features:
- Top and bottom mounting holes allowing for easy left to right shaft conversion.
- Low-high pressure packing design with integrated cooling system.
- High volumetric efficient suction/delivery valves.
- Splash lubrication
- SAE-B Hydraulic bell housing and flexible couplers available
Specifications:
- Max Volume: 19.6 GPM
- Max Discharge Pressure4050 PSI
- Max Pump Speed: 1000 RPM
- Max Inlet Pressure: 45 PSI
- Max Fluid Temp: 140 degrees F
- Inlet: 1" NPTF
- Outlet: 3/4" NPTF
- Bore: 25mm
- Stroke: 50mm
- Shaft: 40mm
