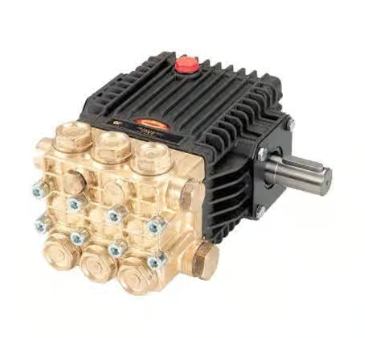

General Pump Brass Triplex Plunger Pump - 3.0 GPM, 3000 PSI, 3400 RPM Part Number TX1508S34

General Pump Brass Triplex Plunger Pump - 3.0 GPM, 3000 PSI, 3400 RPM Part Number TX1508S34

Regular price $337.75
Regular price $679.50 Sale price $337.75
Sale Sold out

TX Series “63” Pump

The General Pump TX1508S34 is a triplex plunger pump equipped with oversized bearings and a new generation seal system to improve the lifespan of the pump. Manifold is constructed with forged brass. Designed to handle a maximum pressure of 3000 PSI and a speed of 3400 RPM. The pump produces a maximum flow rate of 3.0 GPM.

Specifications:
  • GPM: 3.0
  • PSI: 3000
  • RPM: 3400
  • Bore: .591 in / 15 mm
  • Stroke: .315 in / 8 mm
  • HP: 6.2 EBHP
  • Maximum Inlet Pressure 125 PSI
  • Minimum Inlet Pressure: Flooded
  • Crankcase Oil Capacity 14.0 oz.
  • Maximum Fluid Temperature 165 Degrees F
  • Inlet Port Thread: 1/2 - 14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 19 lbs.
  • Dimensions 8.4 x 8.3 x 4.8 in
UPC:
  • GTIN: 682491119685
Features:
  • Flex coupling and bell housing available for direct drive
  • Oversized bearings for long life
  • New generation seal system for longer life
  • Forged brass manifold
