General Pump

General Pump Brass Triplex Plunger Pump - 4.2 GPM, 3000 PSI, 1750 RPM Part Number EZ3042S

General Pump Brass Triplex Plunger Pump - 4.2 GPM, 3000 PSI, 1750 RPM Part Number EZ3042S

$431.66
$867.32 $431.66
Sale Sold out

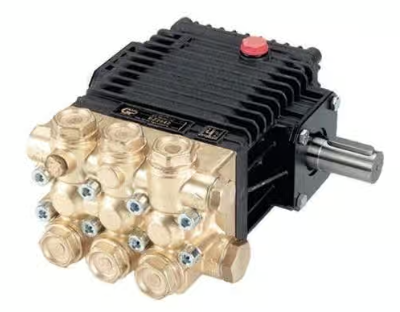

The General Pump EZ3042S is a triplex plunger pump equipped with solid ceramic plungers and an oil-bath crankcase made with die-cast anodized aluminum. The forged brass manifold features a 4:1 hydrostatic rating. Designed to handle a maximum pressure of 3000 PSI and a speed of 1750 RPM. The pump produces a maximum flow rate of 4.2 GPM.


Specifications:
  • GPM: 4.2
  • PSI: 3000
  • RPM: 1750
  • Stroke:.512 in./13 mm
  • HP: 8.6 EBHP
  • Maximum Inlet Pressure 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Plunger Bore: 0.708 in./18 mm
  • Crankcase Oil Capacity 14.0 oz.
  • Maximum Fluid Temperature 165 Degrees F
  • Inlet Port Thread 1/2-14 BSPP-F
  • Discharge Port Thread 3/8-19 BSPP-F
  • Shaft Diameter .945 in. / 24 mm
  • Weight 18 lbs.
  • Dimensions 8.6 in. x 8.7 in. x 5.5 in.
UPC:
  • GTIN: 682491119852
Features:
  • Solid ceramic plungers
  • Flex coupling and bell housing available for direct drive
  • Forged brass manifold with a 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves
