General Pump

General Pump Brass Triplex Plunger Pump With Unloader - 2.11 GPM, 1500 PSI, 1750 RPM Part Number T9051EBFU

General Pump Brass Triplex Plunger Pump With Unloader - 2.11 GPM, 1500 PSI, 1750 RPM Part Number T9051EBFU

$335.85
$675.70 $335.85
Sale Sold out

2.11 GPM - Electric Motor Driven Pump

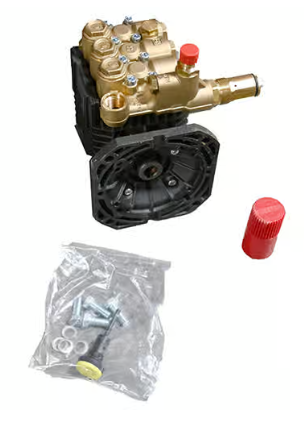

The General Pump T9051EBFU is a triplex plunger pump from the TT Series 51, EBF line of pumps. It includes an unloader. Forged brass manifold is resistant to corrosion and offers increased strength. This pump delivers a flow rate of 2.11 GPM and endures a maximum pressure of 1500 PSI. Ships with a NEMA 56C mounting flange designed for compatibility with electric motors. Great for general cleaning, RO and misting
applications.

Specifications:
  • Includes: Unloader
  • Maximum Volume: 2.11 GPM
  • Maximum Discharge Pressure: 1500 PSI
  • Maximum Pump Speed: 1750 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3 ft. water (2.6 Hg)
  • Plunger Bore (in / mm): .591" / 15mm
  • Plunger Stroke (in / mm): .370" / 9.4mm
  • Oil Capacity: 11.2 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 3/8-19 BSPP-F
  • Discharge Port Thread: 1/4-19 BSPP-F
  • Shaft Diameter: 5/8 in. / 16 mm
  • Weight: 11.5 lbs.
  • GTIN: 682491119203
Features:
  • Forged brass manifold
  • Die-cast anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning, RO and misting applications
  • Comes standard with NEMA 56C electric motor mounting flange
  • Also available in “L” left-handed versions
View full details
