General Pump

General Pump Car Wash CW47 Series Triplex Plunger Pump - 5 GPM, 3000 PSI Part Number CW3040

General Pump Car Wash CW47 Series Triplex Plunger Pump - 5 GPM, 3000 PSI Part Number CW3040

Regular price $659.92
Regular price $1,319.84 Sale price $659.92
Sale Sold out

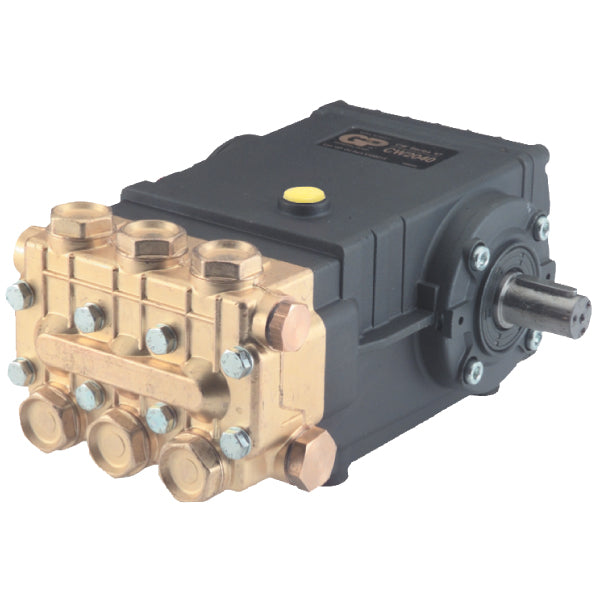

The General Pump CW3040 Plunger Pump has a large-capacity aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A preferred pump frame in the pressure cleaning industry, this pump is excellent for commercial car wash applications.

  • 5 GPM flow rate
  • 3000 PSI maximum discharge pressure
  • 1/2" BSP-F inlet port thread
  • 3/8" BSP-F discharge port thread
  • 1250 RPM maximum pump speed
  • 125 PSI maximum inlet pressure
  • 9' water maximum inlet vacuum
  • 20 mm bore
  • 16 mm stroke
  • 24 mm solid shaft - right mount
  • 40.6 ounce crankcase oil capacity
  • 165° Fahrenheit maximum fluid temperature
  • Weight: 33.20 lbs.
