General Pump

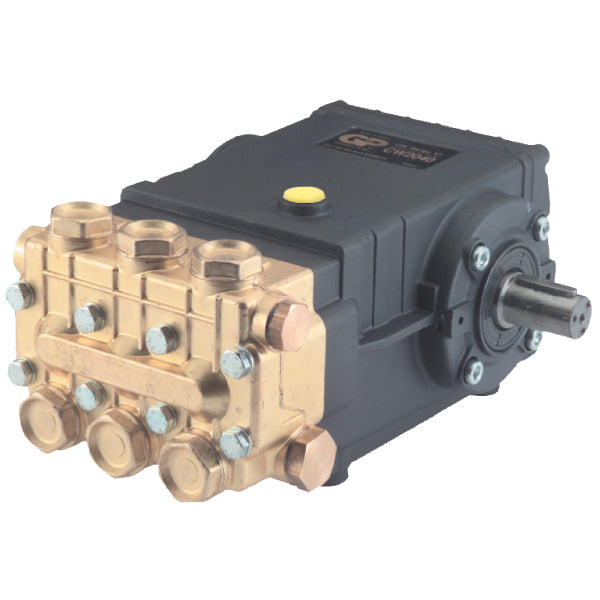

General Pump Car Wash Series Triplex Plunger Pump - 5.0 GPM, 1500 PSI, 1250 RPM Part Number CW2040

General Pump Car Wash Series Triplex Plunger Pump - 5.0 GPM, 1500 PSI, 1250 RPM Part Number CW2040

Regular price $574.92
Regular price $1,972.19 Sale price $574.92
Sale Sold out

General Pump's CW2040 is a triplex plunger pump for car washes and preferred in self-service applications. Constructed with a forged brass manifold and solid ceramic plungers. Designed with a large capacity die-cast anodized aluminum oil-bath crankcase. Equipped with over-sized connecting rods to extend the rod's life.

  • GPM: 5.0
  • PSI: 1500
  • RPM: 1250
  • Maximum Inlet Pressure: 125 PSI
  • Bore: .787 in. / 20 mm
  • Stroke: .630 in. / 16 mm
  • Crankcase Oil Capacity: 33.8 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2-14 BSP-F
  • Discharge Port Thread: 3/8-19 BSP-F
  • Shaft Diameter: .945 in. / 24 mm Dual Shaft
  • Weight: 32.20 lbs.
  • Dimensions: 11.4" x 10.8" x 6.9"
