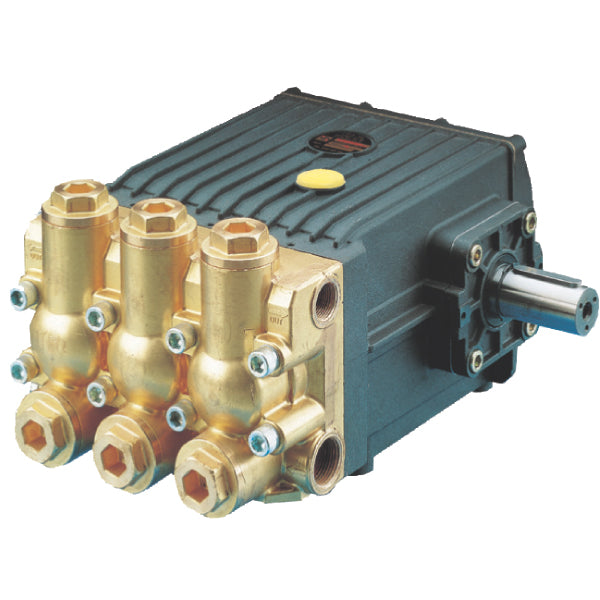

General Pump CW Series 69 Triplex Plunger Pump 30 Mm Bore Left Shaft Part Number CW1012L

General Pump CW Series 69 Triplex Plunger Pump 30 Mm Bore Left Shaft Part Number CW1012L

Regular price $1,617.24
Regular price $3,234.48 Sale price $1,617.24
Sale Sold out

Pump is engineered with a triplex design with a 30 mm left bore shaft and a forged brass manifold. Packings on the solid ceramic plungers are continuously lubricated. Over-sized connecting rods are used to extend the maximum life of the CW Series 69 Triplex Plunger Pump. This is the preferred pump frame used in the two-gun prep conveyor and tunnel car wash industry.

  • Pump Model CW1012
  • Maximum Volume 12.0 GPM
  • Maximum Discharge Pressure 1000 PSI
  • Maximum Pump Speed 900 RPM
  • Maximum Inlet Vacuum 2 ft. water (1.8 in. Hg)
  • Bore 1.18 in. / 30 mm
  • Stroke .946 in. / 24 mm
  • Crankcase Oil Capacity 50.7 oz.
  • Maximum Fluid Temperature 1650 F
  • Inlet Port Thread 3/4-14 BSPP-F
  • Discharge Port Thread 3/8-19 BSPP-F
  • Shaft Diameter 1.378 in. / 35 mm
  • Weight 45 lbs.

Features:

  • Forged brass manifold
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless-steel inlet and discharge valves
