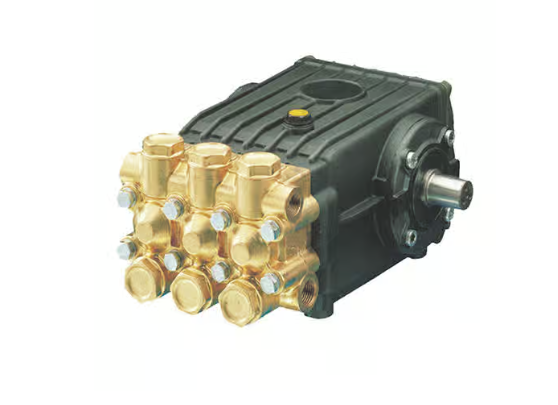

General Pump CW47 Series Triplex Plunger Pump - Left Shaft, 5 GPM, 1500 PSI Part Number CW24L

General Pump's CW24 frame is the preferred in the pressure cleaning industry. Manifold is constructed with forged brass and an oil-bathed crankcase ensures constant lubrication. Inlet and outlet valves are made with unitized stainless-steel.

• Maximum Volume: 5.0 GPM
• Maximum Discharge Pressure: 2500 PSI
• Maximum Pump Speed: 1250 RPM
• Maximum Inlet Pressure: 125 PSI
• Plunger Bore: .787 in. / 20 mm
• Plunger Stroke: .630 in. / 16 mm
• Crankcase Oil Capacity: 33.8 oz.
• Maximum Fluid Temperature: 165° F
• Inlet Port Thread: 1/2-14 BSP-F
• Discharge Port Thread: 3/8-19 BSP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 30 lbs.
• Dimensions: 11.4" x 9.2" x 7.2"

Features:

• Pressure cleaning industry preferred frame
• Forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless-steel inlet and discharge valves
• Over-sized connecting rods
• Heavy-duty tapered roller bearing
