General Pump

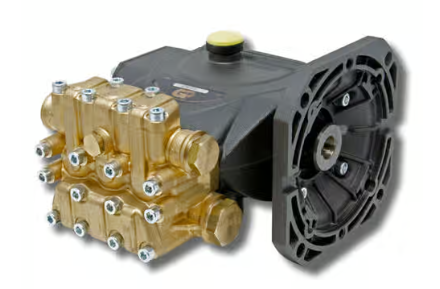

General Pump Electric ETB Series Triplex Plunger Pump - 1.75 GPM, 2610 PSI, 3400 RPM Part Number ETB1504E345

General Pump Electric ETB Series Triplex Plunger Pump - 1.75 GPM, 2610 PSI, 3400 RPM Part Number ETB1504E345

Regular price $298.77
Regular price $601.54 Sale price $298.77
Sale Sold out
The General Pump ETB1504E345 is an electric triplex plunger pump from the ETB series. It is built with a forged brass manifold to increase the durability of the pump's head. Plungers are made with solid ceramic to improved strength. Designed with a 5/8" hollow shaft that meets NEMA 56C flange standards. The pump is engineered to endure a maximum pressure of 2610 PSI, handles a maximum speed of 3400 RPM, and produces a flow rate of 1.75 GPM.

Specifications:
  • GPM: 1.75
  • PSI: 2610
  • RPM: 3400
  • Bore: .591 in./15 mm
  • Stroke: .157 in./4 mm
  • HP: 3.2 EBHP
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: 3 ft. water (2.6 Hg) Flooded
  • Plunger Bore (in / mm): .591 in./15 mm
  • Plunger Stroke (in / mm): .157 in./4 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2"-14 BSP-F
  • Discharge Port Thread: 3/8"-19 BSP-F
  • Shaft Diameter: 5/8" Hollow
  • Weight: 11.0 lbs.
  • Dimensions: 7.3" x 7.4" x 5.5"
Features:
  • Durable forged brass manifold
  • Dust protection chamber
  • Solid ceramic plungers
  • Advanced plunger mounting system
  • Valve cover for ease of service
  • NEMA 56C flange, 5/8" hollow shaft
