General Pump Electric ETB Series Triplex Plunger Pump - 2.93 GPM, 2610 PSI, 3400 RPM Part Number ETB1506E345
General Pump Electric ETB Series Triplex Plunger Pump - 2.93 GPM, 2610 PSI, 3400 RPM Part Number ETB1506E345
Regular price
$298.77
Regular price
$601.54
Sale price
$298.77
Unit price
per
Couldn't load pickup availability

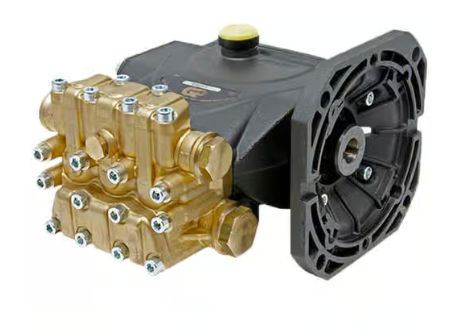

The General Pump ETB1506E345 is an electric triplex plunger pump from the ETB series. It is built with a forged brass manifold to increase the durability of the pump's head. Plungers are made with solid ceramic to improved strength. Designed with a 5/8" hollow shaft that meets NEMA 56C flange standards. The pump is engineered to endure a maximum pressure of 2610 PSI, handles a maximum speed of 3400 RPM, and produces a flow rate of 2.93 GPM.
Specifications:
Specifications:
- GPM: 2.93
- PSI: 2610
- RPM: 3400
- Bore: .591 in./15 mm
- Stroke: .256 in./6.5 mm
- HP: 4.8 EBHP
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: 3 ft. water (2.6 Hg) Flooded
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter: 5/8" Hollow
- Weight: 11.0 lbs.
- Dimensions: 7.3" x 7.4" x 5.5"
- Durable forged brass manifold
- Dust protection chamber
- Solid ceramic plungers
- Advanced plunger mounting system
- Valve cover for ease of service
- NEMA 56C flange, 5/8" hollow shaft
