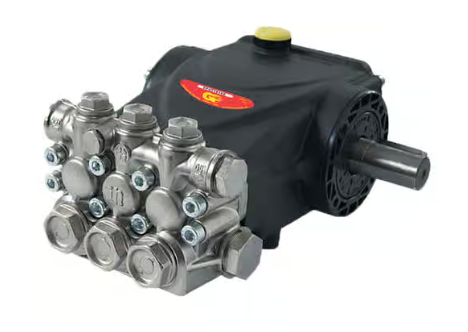

General Pump Emperor EPHT Series Triplex Plunger Pump - 3.3 GPM, 2465 PSI, 1450 RPM, Hi-Temp Seals Part Number EPHT1810S

General Pump Emperor EPHT Series Triplex Plunger Pump - 3.3 GPM, 2465 PSI, 1450 RPM, Hi-Temp Seals Part Number EPHT1810S

Regular price $633.12
Regular price $1,266.24 Sale price $633.12
Sale Sold out

This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. Its new optimized outlet valves help provide a long lasting life. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.

  • Nickle-Plated Manifold
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal

Specifications:

  • Max Volume: 3.3 GPM
  • Max Discharge Pressure: 2465 PSI
  • Max Pump Speed: 1450 RPM
  • Max Inlet Pressure: 125 PSI
  • Stroke: 10mm
  • Bore: 18mm
  • Horsepower: 5.6
  • Inlet: 1/2"-14 BSPF
  • Discharge port: 3/8"-19 BSPF
  • Right-hand Solid Shaft: 24mm
  • Weight:18 lbs
