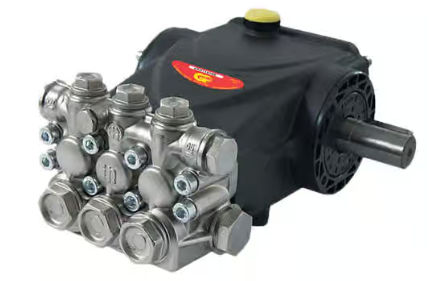

General Pump Emperor EPHT Series Triplex Plunger Pump - 3.3 GPM, 2465 PSI, 1450 RPM, Hi-Temp Seals Part Number EPHT1810SL

This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. Its new optimized outlet valves help provide a long lasting life. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.

• Nickle-Plated Manifold
• Patent/pending plunger guide bushing
• Solid ceramic plungers with an innovative dual guide system.
• Optimized outlet valves
• New dual lip oil seal

Specifications:

• Max Volume: 3.3 GPM
• Max Discharge Pressure: 2465 PSI
• Max Pump Speed: 1450 RPM
• Max Inlet Pressure: 125 PSI
• Stroke: 10mm
• Bore: 18mm
• Horsepower: 5.6
• Inlet: 1/2"-14 BSPF
• Discharge port: 3/8"-19 BSPF
• Left-hand Solid Shaft: 24mm
• Weight:18lbs
