General Pump Emperor EPHT Series Triplex Plunger Pump - 3.9 GPM, 2465 PSI, 1750 RPM, Hi-Temp Seals Part Number EPHT1812S
General Pump Emperor EPHT Series Triplex Plunger Pump - 3.9 GPM, 2465 PSI, 1750 RPM, Hi-Temp Seals Part Number EPHT1812S
Regular price
$633.12
Regular price
$1,270.24
Sale price
$633.12
Unit price
/
per
Couldn't load pickup availability

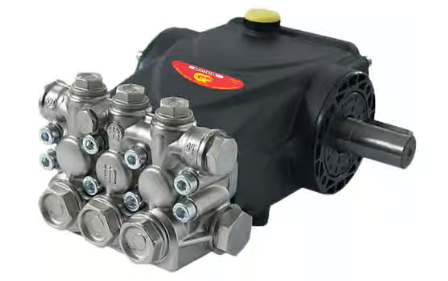

This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. Its new optimized outlet valves help provide a long lasting life. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.
- Nickle-Plated Manifold
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system.
- Optimized outlet valves
- New dual lip oil seal
Specifications:
- Max Volume: 3.9 GPM
- Max Discharge Pressure: 2465 PSI
- Max Pump Speed: 1450 RPM
- Max Inlet Pressure: 125 PSI
- Stroke: 12mm
- Bore: 18mm
- Horsepower: 5.6
- Inlet: 1/2"-14 BSPF
- Discharge port: 3/8"-19 BSPF
- Right-hand Solid Shaft: 24mm
- Weight: 18 lbs.
