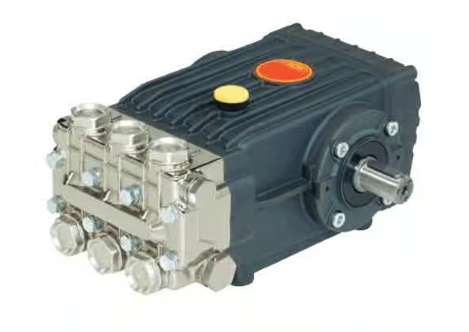

General Pump Emperor HTS Series 66 TSF Left Shaft Triplex Plunger Pump - 2300 PSI, 5 GPM Part Number HTS2215S

The Triplex design makes this pump ideal for rigorous duty cycles, car washes and high-pressure cleaning applications. It can withstand high pressures up to 2300 PSI and pumps 5 gallons per minute. Both the inlet and outlet valve plugs are nickel-plated. The nickel-plated forged brass manifold is engineered to endure high temperatures and harsh chemicals. Note: Left-handed shaft.

• Maximum Volume: 5 GPM
• Maximum Pressure: 2300 PSI
• Maximum RPM: 1200 RPM
• Maximum Inlet Pressure: 125 PSI
• Minimum Inlet Pressure: 9 ft. water
• Maximum Fluid Temperature: 185 degrees F
• Bore: .866 in.
• Stroke: .591 in.
• Oil Capacity: 40.6 oz.
• Inlet Port Thread: 1/2"
• Discharge Port Thread: 3/8"
• Shaft Diameter: 24 mm
• Weight 32 lbs.

• Patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate rings, and superior high-pressure seal
• Ceramic plungers
• Patent-pending inlet/outlet valve cage
• Nickel-plated forged brass manifold
• Heavy-duty tapered roller bearings
