General Pump

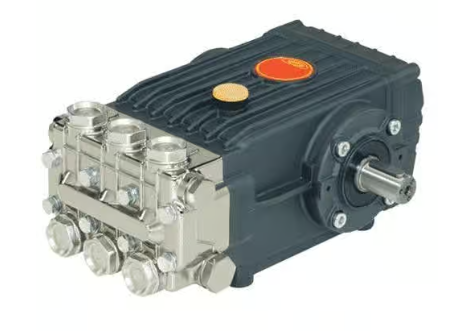

General Pump Emperor HTS Series Left Shaft Triplex Plunger Pump - 5.6 GPM, 3000 PSI, 1450 RPM Part Number HTS2016SL

General Pump Emperor HTS Series Left Shaft Triplex Plunger Pump - 5.6 GPM, 3000 PSI, 1450 RPM Part Number HTS2016SL

Regular price $762.21
Regular price $1,524.42 Sale price $762.21
Sale Sold out

The Triplex design makes this pump ideal for rigorous duty cycles, car washes and high-pressure cleaning applications. It can withstand high pressures up to 3000 PSI and pumps 5.6 gallons per minute. Both the inlet and outlet valve plugs are nickel-plated. The nickel-plated forged brass manifold is engineered to endure high temperatures and harsh chemicals. Note: Left-handed shaft.
Dimensions - Nominal:  12.4" x 10.0" x 6.9"

  • Features patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate rings, and superior high-pressure seal
  • Ceramic plungers
  • Patent-pending inlet/outlet valve cage
  • Nickel-plated forged brass manifold
  • Heavy-duty tapered roller bearings

Specifications:

  • Pump Model: HTS2016S
  • Maximum Volume: 5.6 GPM
  • Maximum Pressure: 3000 PSI
  • Maximum RPM: 1450 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: 9 ft. water
  • Maximum Fluid Temperature: 185°F
  • Bore: .787 in.
  • Stroke: .630 in.
  • Oil Capacity: 40.6 oz.
  • Inlet Port Thread: 1/2"
  • Discharge Port Thread: 3/8"
  • Shaft Diameter: .945 in.
  • Weight 32 lbs.
