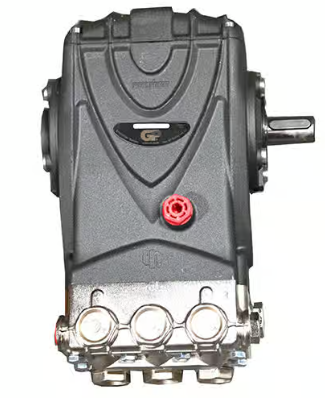

General Pump Emperor Series Pump - 5.6GPM, 3000 PSI Part Number HTS2016S

The General Pump HTS2016S Emperor Series Pump has ceramic plungers and is ideal for use in car wash and other high pressure cleaning applications.

HTS2016S Specifications:

• Pump Model HTS2016S
• Maximum Volume 5.6 GPM
• Maximum Pressure 3000 PSI
• Maximum RPM 1450 RPM
• Maximum Inlet Pressure 125 PSI
• Minimum Inlet Pressure 9 ft. water (7.9 in. Hg)
• Maximum Fluid Temperature 185oF
• Bore (in / mm) .787 in. / 20 mm
• Stroke (in / mm) .630 in. / 16 mm
• Oil Capacity 40.6 oz.
• Inlet Port Thread 1/2"-14 BSP-F
• Discharge Port Thread 3/8"-19 BSP-F
• Shaft Diameter .945 in. / 24 mm
• Weight 32 lbs.
• Dimensions - Nominal 12.4" x 10.0" x 6.9"
