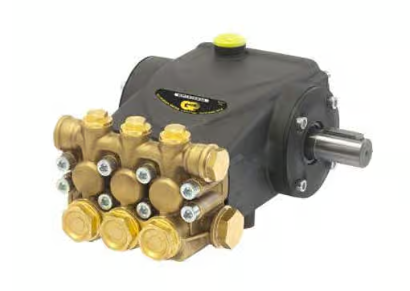

General Pump EP Series 2.1 GPM 4000 PSI Triplex Plunger Pump Part Number EP1306S34

The EP1306S34 is an innovative triplex plunger pump with an outstanding lifespan. Solid ceramic plungers with a new, state of the art dual guide system reduces friction between plungers and seals, increasing the life of seals. A forged brass manifold increases working pressure to 4,000 PSI. The larger crank case design offered by the EP1306S34 allows for an oversized mechanical section, increasing oil capacity while reducing oil temperature for better cooling and better lubrication. Optimized outlet valves enable the pump to have a better volumetric efficiency while a redesigned plunger fastening system virtually eliminates the risk of excessive pressure build-up inside the plunger itself.

Pump Dimensions: 9.5" x 8.38" x 5.1"

• Forged brass manifold with a working pressure of 4,000 PSI
• Solid ceramic plungers with innovative dual glide system and plunger guide bushing
• Dust protection chamber between crankcase and manifold
• Optimized outlet valves
• Dual lip oil seal
