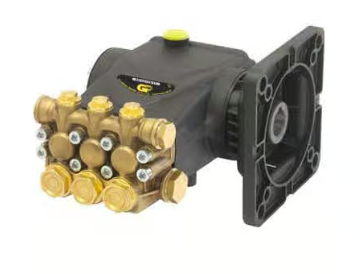

General Pump EP Series Hollow Shaft Plunger Pump, 4 GPM, 2500 PSI, 1750 RPM, Right Shaft Part Number EP1812E17

This EP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help with a long lasting life warranty. Advanced forged brass manifold provides for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 28.58 mm hollow right shaft flanged for direct couple to NEMA 184TC electric motors.

Dimensions: 9.7" x 8.45" x 6.3"

• Triplex Plunger Pump
• Advanced forged brass manifold, increases working pressure to 4,000 PSI.
• Patent/pending plunger guide bushing
• Solid ceramic plungers with an innovative dual guide system.
• Optimized outlet valves
• New dual lip oil seal.
• Flanged for direct couple to NEMA 184TC electric motors

Specifications:

• Max Volume: 4.0 GPM
• Max Discharge Pressure: 2500 PSI
• Max Pump Speed: 1750 RPM
• Max Inlet Pressure: 125 PSI
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
• See more under the Specifications tab
