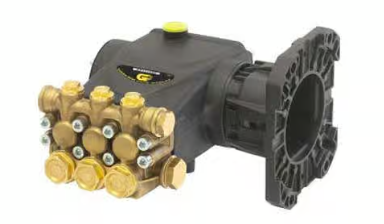

General Pump EP Series Hollow Shaft Triplex Plunger Pump - 4000 PSI, 3.2 GPM, 3400 RPM, 13.2 HP Part Number EP1310G8

General Pump's EP1310G8 is a pump designed with a 1-inch hollow shaft that is flanged for coupling with (SAE J609B) gas powered engines. Equipped with ceramic plungers that feature a new dual guide system. Forged brass manifold withstands a maximum pressure of 4000 PSI. Handles a maximum flow rate of 3.2 GPM.

Specifications:

• Maximum Volume: 3.2 GPM

• Maximum Discharge Pressure: 4,000 PSI

• Horsepower: 13.2 GHP

• Maximum Pump Speed: 3400 RPM

• Maximum Inlet Pressure: 125 PSI

• Max. Inlet Vacuum: Flooded

• Plunger Bore: .512 in./13 mm

• Plunger Stroke: .394 in./10mm

• Oil Capacity: 15 oz.

• Maximum Fluid Temperature: 165° F

• Inlet Port Thread: 1/2"-14 BSP-F

• Discharge Port: Thread 3/8"-19 BSP-F

• Shaft Diameter: 1 in./25.4 mm

• Weight: 15.90 lbs.
