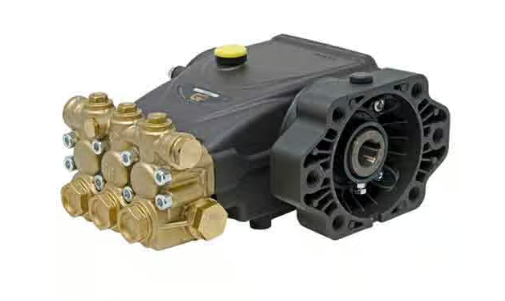

General Pump ES Series Pump 5.55 GPM, 3600 PSI, With Hydraulic Flange Part Number ES2013HYD

General Pump Evolution ES Series pumps boast reliability and long-lasting service life. Features forged brass manifold and plunger guide bushing for durability as well as an innovative protection chamber between the crankcase and manifold! Includes SAE B 2/2 bolt mount flange and 7/8" hollow keyed shaft for easy power transfer.

Pump Dimensions: 10.4" x 8.8" x 5.4"

Shaft Diameter: .945" / 24 mm

Features:

• Triplex plunger pump
• Tough forged brass manifold
• Plunger guide bushing
• Solid ceramic plungers w/ dual glide system
• Optimized outlet valves for reliable use
• Unique protection chamber separates crankcase and manifold
• Dual lip oil seal
• Tach sensor port and pickup ring included
• 7/8" Hollow Keyed Shaft, SAE B

Specifications:

• Maximum Volume: 5.55 GPM
• Maximum Discharge Pressure: 3,600 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Temperature: 165°F
• Inlet Port: 1/2"-14 BSP-F
• Discharge Port: 3/8"-19 BSP-F
