General Pump

General Pump ET Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 3400 RPM, Left Shaft Part Number ET1505E34L

General Pump ET Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 3400 RPM, Left Shaft Part Number ET1505E34L

$281.41
$566.82 $281.41
Sale Sold out

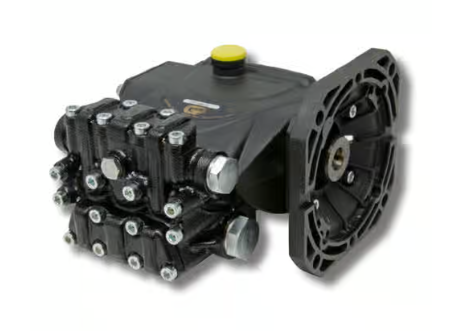

The General Pump ET1505E34L is a triplex plunger pump from the ET Series pump line. Designed with a hollow shaft that is flanged and accepts a NEMA56C electric motor to power the pump. An anti-corrosion coating is applied the manifold to prevent rust. The oversized crankcase holds 8.5 ounces of oil which is used to lubricate moving components to reduce wear. A maximum flow rate of 2.1 GPM is produced by the pump. Handles a maximum pressure of 2610 PSI.


Specifications:
  • Maximum Flow Rate: 2.1 GPM
  • Maximum Discharge Pressure: 2610 PSI
  • Horsepower: 3.7 EBHP
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: Flooded
  • Plunger Bore: .591"/15 mm
  • Plunger Stroke: .197"/5 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2"-14 BSP-F
  • Discharge Port Thread: 3/8"-19 BSP-F
  • Shaft Diameter: 5/8" Hollow
  • Shaft Orientation: Left
  • Weight: 11.0 lbs.
  • Dimensions - Nominal: 7.3" x 7.4" x 5.5"
Features:
  • “HR” anti-corrosion surface treatment on manifold
  • New generation seal package
  • Dust protection chamber
  • Solid ceramic plungers
  • Oversized plunger guide
  • Optimized inlet and outlet valves
  • Oversized crankcase
  • Hollow shaft, flanged for direct couple to electric motors (NEMA56C)
