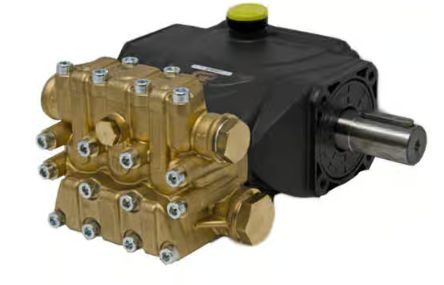

General Pump ETB Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 1750 RPM, Left Shaft Part Number ETB1509S17L
General Pump ETB Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 1750 RPM, Left Shaft Part Number ETB1509S17L
Regular price
$298.77
Regular price
$601.54
Sale price
$298.77
Unit price
/
per
The General Pump ETB1509S17L is an ETB Series triplex plunger pump designed with an advanced plunger mounting system and valve cover that allows for easy maintenance. Made with a durable forged brass manifold and dust protection chamber to extend the life of them pump. Delivers a maximum flow rate of 2.1 GPM. Constructed to withstand a maximum pressure of 2610 PSI.
Specifications:
Specifications:
- Maximum Volume: 2.1 GPM
- Maximum Discharge Pressure: 2610 PSI
- Horsepower: 3.7 EBHP
- Maximum Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: 3 ft. water (2.6 Hg)
- Plunger Bore (in / mm): .591 in./15 mm
- Plunger Stroke (in / mm): .370 in./9.4 mm
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165 degrees F
- Inlet Port Thread: 1/2”-14 BSP-F
- Discharge Port Thread: 3/8”-19 BSP-F
- Shaft Diameter: .945 in./24 mm
- Weight: 11.0 lbs.
- Dimensions - Nominal: 8" x 7.4" x 4.7"
- Durable forged brass manifold
- Dust protection chamber
- Solid ceramic plungers
- Advanced plunger mounting system
- Valve cover for ease of service
