General Pump ETB Series Triplex Plunger Pump - 3.2 GPM, 2610 PSI, 3400 RPM, 3/4 Inch Hollow Shaft, Gas Part Number ETB1507G

General Pump ETB Series Triplex Plunger Pump - 3.2 GPM, 2610 PSI, 3400 RPM, 3/4 Inch Hollow Shaft, Gas Part Number ETB1507G

$298.77
$601.54 $298.77
Sale Sold out

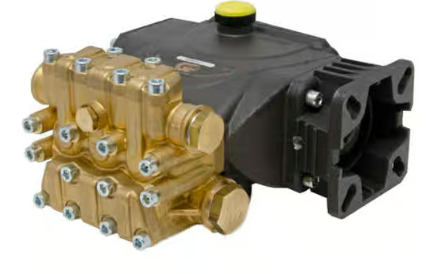

The General Pump ETB1507G is an ETB Series triplex plunger pump designed with a 3/4" hollow shaft that couples to gas engines. It features a forged brass manifold for durability and a dust protection chamber to extend the pump's maximum lifespan. The pump is engineered and constructed to handle a maximum pressure of 2610 PSI and a maximum speed of 3400 RPM. Provides a maximum flow rate of 3.2 GPM.

Specifications:
  • Maximum Volume: 3.2 GPM
  • Maximum Discharge Pressure: 2610 PSI
  • Horsepower: 8.6 GHP
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: Flooded
  • Plunger Bore (in / mm): .591 in./15 mm
  • Plunger Stroke (in / mm): .283 in./7.2 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165⁰ F
  • Inlet Port Thread: 1/2”-14 BSP-F
  • Discharge Port Thread: 3/8”-19 BSP-F
  • Shaft Diameter: Hollow, 3/4” / 19.05 mm
  • Weight: 11.0 lbs.
  • Dimensions - Nominal: 7.4” x 7.7” x 3.3”
Features:
  • Durable forged brass manifold
  • Dust protection chamber
  • Solid ceramic plungers
  • Oversized plunger guide
  • Optimized inlet and outlet valves
  • Valve cover for ease of service
  • Oversized crankcase
  • Hollow shaft, flanged for direct coupling with gasoline engines (SAE J609A)
