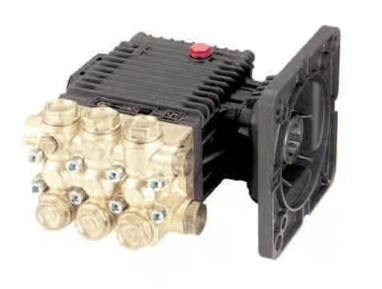

General Pump EZ Series 44E Triplex Plunger Pump, 4.2 GPM, 2500 PSI, Right Shaft Part Number EZ2542E

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1.125" hollow shaft flanged for direct couple to electric motors (NEMA-184TC).

Dimensions: 8.8" x 8.8" x 6.3"

Features

• Solid ceramic plungers
• Right shaft
• NEMA 184C mounting flange for electric motors
• Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves


Specifications

• Maximum Volume: 4.2 GPM
• Maximum Pressure: 2500 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Fluid Temperature: 165°F
• Inlet Port: 1/2"-14 BSPP-F
• Outlet Port: 3/8"-19 BSPP-F
