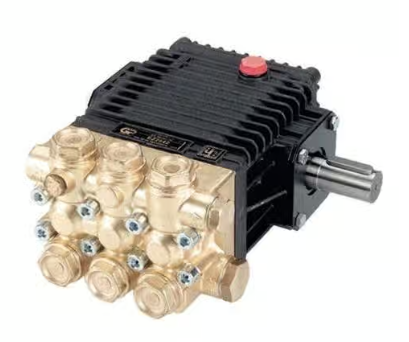

General Pump EZ Series 44S Triplex Plunger Pump, 5.5 GPM, 2500 PSI, Right Shaft Part Number EZ2555S

General Pump EZ Series 44 S Pump

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 24mm hollow shaft flanged for direct couple to standard motors.

Dimensions: 8.6" x 8.7" x 5.5"

Features

• Solid ceramic plungers
• Right shaft

• Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves
• Flex coupling and bell housing available for direct drive

Specifications

• Maximum Volume: 5.5 GPM
• Maximum Pressure: 2500 PSI
• Maximum Pump Speed: 3400 RPM
• Maximum Fluid Temperature: 165°F
• Inlet Port: 1/2"-14 BSPP-F
• Outlet Port: 3/8"-19 BSPP-F
