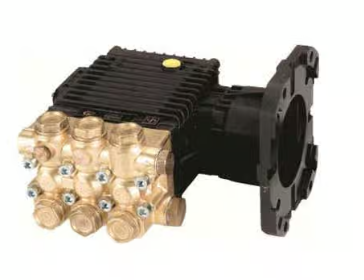

General Pump EZ Series Plunger Pump, 3.5 GPM, 4000 PSI, 3400 RPM, Right Shaft Part Number EZ4035G34

The General Pump EZ4035G34 is a hollow shaft pump that offers superior plunger performance. Its one-piece plunger design keeps water from entering the crankcase and guards against thermal shock or capitation. The pump features a 25.4mm hollow shaft that is able to be pulley-mounted, a forged brass manifold, and a die-cast anodized aluminum oil-bath crankcase with premium roller bearings.

Dimensions: 8.8" x 9.7" x 6.5"

• Triplex Plunger Pump.
• Forged brass manifold with  lifetime warranty.
• Solid ceramic plunger design
• Die/cast, anodized aluminum oil bath crankcase
• Unitized stainless steel inlet and discharge valves
• Standard SAE J609 gasoline mounting flange for engines up to 13 HP.

Specifications:

• Max Volume: 3.5 GPM
• Max Discharge Pressure: 4000 PSI
• Max Pump Speed: 3400 RPM
• Max Inlet Pressure: 125 PSI
• Inlet Port: 1/2"-14 BSPP-F
• Discharge Port: 3/8"-19 BSPP-F
