General Pump

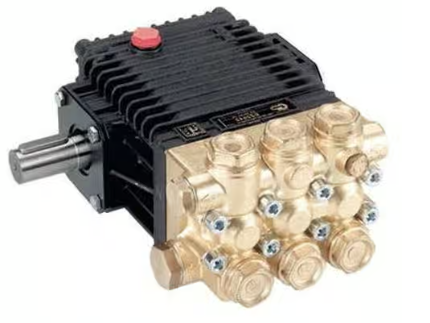

General Pump EZ3042SL Brass Triplex Plunger Pump, Left Shaft - 4.2 GPM, 3000 PSI, 1750 RPM

General Pump EZ3042SL Brass Triplex Plunger Pump, Left Shaft - 4.2 GPM, 3000 PSI, 1750 RPM

Regular price $431.66
Regular price $867.32 Sale price $431.66
Sale Sold out
The General Pump EZ3042S is a triplex plunger pump equipped with solid ceramic plungers and an oil-bath crankcase made with die-cast anodized aluminum. The forged brass manifold features a 4:1 hydrostatic rating. Designed to handle a maximum pressure of 3000 PSI and a speed of 1750 RPM. The pump produces a maximum flow rate of 4.2 GPM. It's shaft is located on the left side.


Specifications:
  • GPM: 4.2
  • PSI: 3000
  • RPM: 1750
  • Stroke:.512 in./13 mm
  • HP: 8.6 EBHP
  • Maximum Inlet Pressure 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Plunger Bore: 0.708 in./18 mm
  • Crankcase Oil Capacity: 14.0 oz.
  • Maximum Fluid Temperature: 165 Degrees F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Shaft: Left Side
  • Weight 18 lbs.
  • Dimensions 8.6 in. x 8.7 in. x 5.5 in.
UPC:
  • GTIN: 682491141709
Features:
  • Solid ceramic plungers
  • Flex coupling and bell housing available for direct drive
  • Forged brass manifold with a 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves
