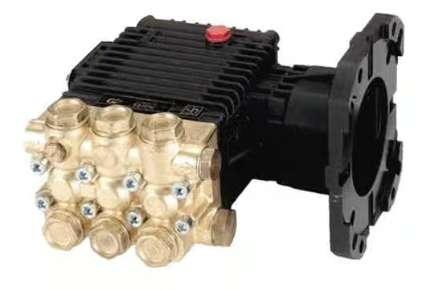

General Pump Flanged Gasoline Triplex Plunger Pump - 4.0 GPM, 4200 PSI, 3400 RPM Part Number EZ4040G

Pressure cleaning pumps are designed with a forged brass manifold. Pump incorporates an SAE J609 gasoline mounting flange to mount up to 13 HP engines. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase with a capacity of 14 ounces.

Specifications:

• Maximum Volume: 4.0 GPM

• Maximum Discharge Pressure: 4200 PSI

• Maximum Pump Speed: 3400 RPM

• Maximum Inlet Pressure: 125 PSI

• Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)

• Plunger Bore: .512 in. / 13 mm

• Plunger Stroke: .512 in. / 13 mm

• Crankcase Oil Capacity: 14.0 oz.

• Maximum Fluid Temperature: 165° F

• Inlet Port Thread: 1/2-14 BSPP-F

• Discharge Port Thread: 3/8-19 BSPP-F

• Shaft Diameter: 1.0 in. / 25.4 mm

• Weight: 20 lbs.

• Dimensions: 8.8" x 9.7" x 6.5"


Features:

• Standard SAE J609 gasoline mounting flange for up to 13 hp engines

• Forged brass manifold with an exclusive lifetime warranty and 3:1 hydrostatic rating

• Die-cast, anodized aluminum oil-bath crankcase

• Innovative one-piece plunger design to eliminate water entering crankcase

• Premium roller bearing

• 5% reduction in crankcase load compared to standard 3,000 PSI, 15 mm pumps

• Unitized stainless steel inlet and discharge valves

• Available in "L" left-handed versions
