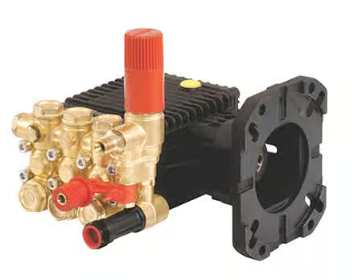

General Pump Flanged Mounting Ready Triplex Plunger Pump - 3.6 GPM, 2500 PSI, 1750 RPM Part Number EZ2536EUI

Pressure cleaning pumps are designed with solid ceramic plungers and a NEMA184C mounting flange. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase. Flanged for direct coupling to electric motors and includes unloader and downstream injector.

Specifications:

• GPM: 3.6

• PSI: 2500

• RPM: 1750

• Bore: 0.708 in./18 mm

• Stroke: 0.433 in./11 mm

• HP: 6.2 EBHP

• Maximum Inlet Pressure: 125 PSI

• Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)

• Plunger Bore: .708 in.

• Plunger Stroke: .433 in.

• Crankcase Oil Capacity: 14.0 oz.

• Maximum Fluid Temperature: 165°F

• Inlet Port Thread: 1/2" BSPP-F

• Discharge Port Thread: 3/8" BSPP-F

• Shaft Diameter: 1.125 in. / 28.5 mm

• Ship Weight: 18.5 lbs.

• Dimensions: 8.8 in. x 8.8 in. x 6.3 in.
