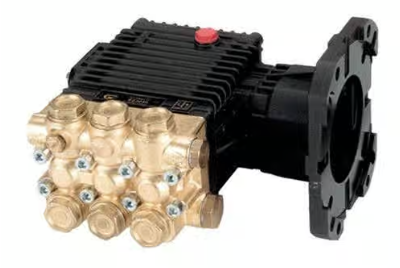

General Pump Gasoline Mounting Flanged Triplex Plunger Pump - 4.6 GPM, 3000 PSI, 3400 RPM Part Number EZ3045G

Pressure cleaning pumps are designed with solid ceramic plungers. Pump has an SAE J609 gasoline mounting flange installed onto the shaft for mounting up to 13 HP engines. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase.

Specifications:

• GPM: 4.6
• PSI: 3000
• RPM: 3400
• Bore: .591 in./15 mm
• Stroke: .335 in./8.5 mm
• HP: 14.2 GHP
• Maximum Inlet Pressure: 125 PSI
• Minimum Inlet Pressure: 3 Ft. Water / 2.6 in. Hg.
• Plunger Bore (in / mm): .591 in / 15 mm
• Plunger Stroke: .433 in.
• Oil Capacity: 14.0 oz
• Maximum Fluid Temperature: 165°F
• Inlet Port Thread: 1/2" - 14 BSP-F
• Discharge Port Thread: 3/8" - 19 BSP-F
• Shaft Diameter: 1.0 in. / 25.4 mm
• Weight: 19.1 lbs
• Dimensions: 8.8" x 9.7" x 6.5
