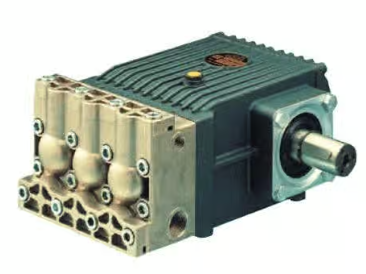

General Pump High Flow Triplex Plunger Pump - 12 GPM, 900 PSI, 650 RPM, Left Shaft Part Number T41L

General Pump High Flow Triplex Plunger Pump - 12 GPM, 900 PSI, 650 RPM, Left Shaft Part Number T41L

$987.36
$1,978.72 $987.36
Sale Sold out
The General Pump T41L is a left shaft triplex plunger pump from the T Series 69 line of pumps and is engineered to produce a high flow rate. It produces a maximum flow rate of 12 GPM for applications requiring a large supply of fluid. Built with oversized connecting rods, heavy duty tapered bearings, and a die-cast anodized aluminum, oil-bath crankcase for durability and maximized longevity. Packings are lubricated by the solid ceramic plungers.

Specifications:
  • Maximum Volume: 12.0 GPM
  • Maximum Discharge Pressure: 900 PSI
  • Maximum Pump Speed: 650 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 Hg)
  • Plunger Bore (in / mm): 1.417 in. / 36 mm
  • Plunger Stroke (in / mm): .945 in. / 24 mm
  • Oil Capacity: 50.7 oz.
  • Maximum Fluid Temperature: 165 Degrees F
  • Inlet Port Thread: 3/4-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: 1.378 in. / 35 mm
  • Shaft Side: Left
  • Weight: 37 lbs.
  • Dimensions: 12.9” x 11.9” x 7.3”
  • GTIN: 682491026228
Features:
  • The industry’s choice for high-flow applications
  • Large-capacity, die-cast anodized aluminum, oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
