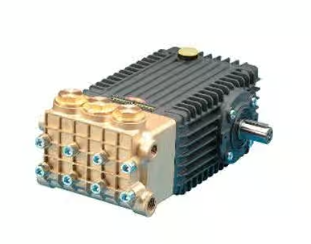

General Pump High-Pressure Triplex Plunger Pump - 5.5 GPM, 5100 PSI Part Number TSP1821

5100 PSI General Pump

The General Pump TSP1819 66 Series triplex pump is a high-pressure pump built for rigorous duty cycles and chemicals. New plunger design improves thermal shock resistance, while innovative new seal design extends seal life. Fully anodized crankcase provides better protection against elements, while forged crankshaft increases load potential and reduces fatigue. Ideal for use in pressure cleaning, self-service carwash, multi-gun prep stations, heavy equipment cleaning, industrial cleaning, and more!

Dimensions: 13.8" x 9.8" x 7.7"

Features:

• New improved plunger design improves thermal shock resistance.
• Oversized cylindrical roller bearings
• White ceramic plungers, 99% alumina-ceramic
• Fully anodized crankcase.
• Patented "high tech" low and high-pressure seals.

Specifications:

• Max Volume: 5.5 GPM
• Max Discharge Pressure: 5100 PSI
• Max Pump Speed: 1450 RPM
• Max Inlet Pressure: 125 PSI
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
