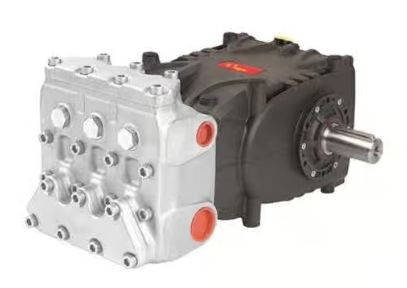

General Pump HTCK Series 70HT Emperor Pump - 21 GPM, 1500 PSI, 1150 RPM Part Number HTCK3623S

The perfect fit for car washes and other high pressure applications, the Emperor HTCK3623S Pump handles rigorous duty cycles, high temperatures and chemicals found in the hardest-working environments. Nickel-plated forged brass manifold, heavy-duty tapered roller bearings, and ceramic plungers all add high levels of durability. High-tech packings provide longer maintenace intervals.

• Dynamic low-pressure seal retainer
• Superior low-pressure seal
• Innovative intermediate ring
• Superior high-pressure seal
• Ceramic plungers
• Patent-pending inlet/outlet valve cage
• Nickel-plated forged brass manifold
• Heavy-duty tapered roller bearings

Specifications:

• Maximum Volume 21 GPM
• Maximum Pressure: 1500 PSI
• Maximum Pump Speed: 1150
• Maximum Inlet Pressure: 125 PSI
• Bore: 36 mm
• Stroke: 23 mm
• Crankcase Oil Capacity: 64.2 oz.
• Maximum Fluid Temperature: 185°F
• Inlet Port Thread: 1" NPT-F
• Discharge Port Thread: 1/2" NPT-F
• Shaft Diameter: 30 mm
• Weight: 79.6 lbs.
