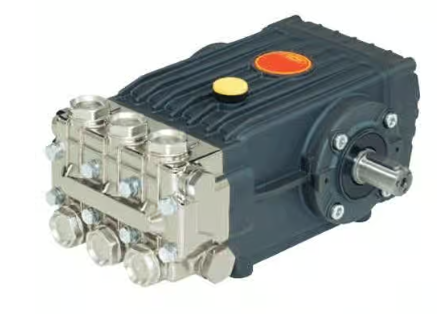

General Pump HTS Series 47HT Left Shaft Plunger Pump - 4 GPM, 2300 PSI Part Number HTS2210SL

A great choice for a variety of wash applications. Perfect for vehicle wash facilities! This triplex plunger pump is specifically designed to handle rigorous duty cycles, high temperatures, and chemicals.

Features:

• Patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate ring, and superior high-pressure seal
• Ceramic plungers
• Patent-pending inlet/outlet valve seal and cage
• Nickel-plated inlet/outlet valve plugs
• Nickel-pleated forged brass manifold
• Heavy-duty tapered roller bearings

Specifications:

• Max. Inlet Pressure: 125 PSI
• Max Pressure: 2300 PSI
• Max Speed: 1450 RPM
• Max Flow: 4 GPM
• Bore: 20 mm
• Stroke: 10 mm
• Horsepower: 6.3 EBHP
• Max. Fluid Temperature:  185 degrees F
• Inlet Port Thread:  1/2″ - 14 BSP-F
• Discharge Port Thread:  3/8″ - 19 BSP-F
• Shaft Diameter:  .945 in./24 mm
• Crankcase Oil Capacity:   40.6 oz.
