General Pump

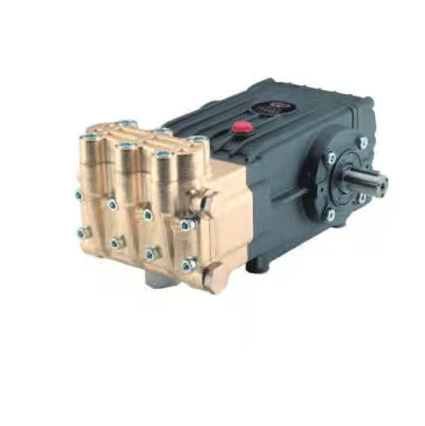

General Pump Left Shaft Piston Pump - 5 GPM, 5000 PSI, 1845 RPMT5050L Part Number T5050L

General Pump Left Shaft Piston Pump - 5 GPM, 5000 PSI, 1845 RPMT5050L Part Number T5050L

$1,222.04
$2,448.08 $1,222.04
Sale Sold out

Left Shaft T Series 47 S Piston Pump

The General Pump T5050L is a 47 Series piston pump that delivers a maximum flow rate of 5 GPM. Forged brass manifold provides twice the strength of cast allowing it to tolerate higher pressures at up to 5000 PSI. Its piston guides are stainless steel which provides resistance to corrosion and an extended life. Valve system is designed to be easily accessible for fast and hassle free service and repairs.

Specifications:
  • Maximum Volume: 5.0 GPM
  • Maximum Discharge Pressure: 5000 PSI
  • Maximum Pump Speed: 1845 RPM
  • Maximum Inlet Pressure: 30 - 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Bore: .630 in. / 16 mm
  • Stroke: .748 in. / 19 mm
  • Crankcase Oil Capacity: 40.6 oz.
  • Maximum Fluid Temperature: 165 Degrees F
  • Inlet Port Thread (2): 1/2-14 BSP-F
  • Discharge Port Thread (2): 3/8-19 BSP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 41 lbs.
  • Dimensions: 14.2” x 9.2” x 6.9”
Features:
  • Forged brass manifold that’s twice as strong as cast
  • Stainless steel piston guides
  • Unique “in-line” valve system for easy access and durability
  • Small bore combined with long stroke for maximum efficiency
  • Thermally bonded ceramic coating rated to 10,000 PSI
  • Proven crankcase and bearing design
