General Pump

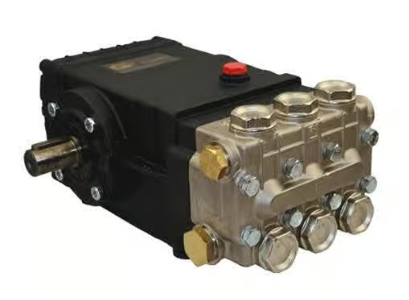

General Pump Left Shaft T-Series 47 S Pump - 5 GPM, 2500 PSI, 1050 RPM Part Number T1621L

General Pump Left Shaft T-Series 47 S Pump - 5 GPM, 2500 PSI, 1050 RPM Part Number T1621L

Regular price $622.70
Regular price $1,249.40 Sale price $622.70
Sale Sold out

Left Shaft T1621 Pump

The General Pump T1621L Pump is a heavy-duty plunger pump with a forged brass manifold, oversized connecting rods, strong taper roller bearing, and solid ceramic plungers. Features unitized stainless steel inlet and discharge valves. This is a highly preferred pump frame in the pressure cleaning industry!

Left side version of the T1621 pump.

Specifications:
  • Maximum Volume: 5.0 GPM
  • Maximum Discharge Pressure: 2500 PSI
  • Maximum Pump Speed: 1050 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Plunger Bore: 22mm (.866")
  • Plunger Stroke: 16mm (.630")
  • Crankcase Oil Capacity: 40.6 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: 24mm (.945")
  • Left shaft
  • Weight: 32 lbs.
  • Dimensions: 12.2" x 9.2" x 6.9"
Features:
  • The preferred pump frame in the pressure cleaning industry
  • Forged brass manifold
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
