General Pump

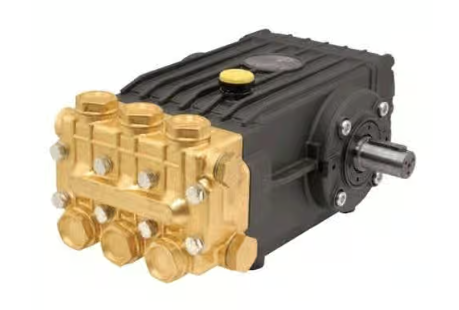

General Pump Nickel Plated Brass Triplex Plunger Pump With 1 Inch Gearbox - 4.5 GPM, 3500 PSI, 1125 RPM Part Number TS2021GR

General Pump Nickel Plated Brass Triplex Plunger Pump With 1 Inch Gearbox - 4.5 GPM, 3500 PSI, 1125 RPM Part Number TS2021GR

Regular price $939.10
Regular price $1,882.20 Sale price $939.10
Sale Sold out

4.5 GPM - 47 Series Pump w/ 1" Gearbox

The General Pump TS2021GR is T Series 47 S triplex plunger pump equipped with a 1" gearbox. Nickel plated forged brass manifold offers increased corrosion resistance when compared to manifolds with out the plating. This pump delivers a maximum flow rate of 4.5 GPM and endures a maximum pressure of 3500 PSI. Parts are designed and constructed with materials to maximize their lifespan for a more durable pump.

Specifications:
  • Includes: 1" Gearbox
  • Maximum Volume (GPM): 4.5
  • Maximum Discharge Pressure (PSI): 3500
  • Maximum Pump Speed (RPM): 1125
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Plunger Bore: .787 in. / 20 mm
  • Plunger Stroke: .630 in. / 16 mm
  • Crankcase Oil Capacity: 40.6 oz.
  • Maximum Fluid Temperature: 165 Degrees F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 32 lbs.
  • Dimensions: 12.2” x 9.2” x 6.9”
  • GTIN: 682491142256
Features:
  • The preferred pump frame in the pressure cleaning industry
  • Forged, nickel-plated, brass manifold (TS2021)
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
