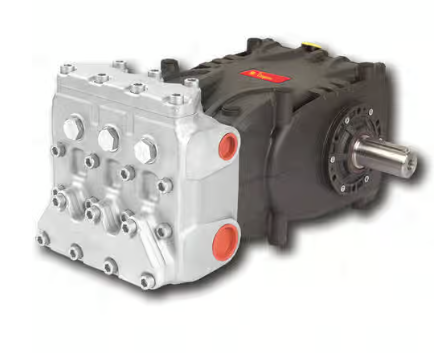

General Pump Nickel-Plated Forged Brass Blue Label Plunger Pump - 45 GPM, 1500 PSI, Left Shaft Part Number PHTCK4050SL

The General Pump PHTCK4050SL is a plunger pump that features their updated proprietary industrial seal stack that delivers superior durability in cold water applications with temperatures of 140 degrees Fahrenheit or less, even when water quality is poor. Each pump is equipped with a manifold constructed of forged brass coated in a nickel plating that provides superior strength and corrosion resistance. This pump produces a maximum pressure of 1500 PSI making it ideal for car wash and high pressure cleaning applications.

• Symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right conversions
• Solid Ceramic plungers
• High volumetric efficiency suction/delivery valve
• SAE-B hydraulic drive available
• Nickel-plated forged brass manifold
• Heavy-duty tapered roller bearings
• Low/High pressure packing design with integrated cooling system
• Ideal for use in car wash and other high pressure cleaning applications

Specifications:

• Maximum Volume: 45.0 GPM
• Maximum Pressure: 1500 PSI
• Maximum RPM: 900
• Horsepower: 46.2 HP
• Maximum Inlet Pressure: 40 PSI
• Maximum Fluid Temperature 140⁰ F
• Bore (in/mm): 1.6 in. (40 mm)
• Stroke (in/mm): 1.9 in. (50 mm)
• Oil Capacity: 124.4 oz. (Use GP 220 Series Oil)
• Inlet Port Thread: 1-1/2”-11 NPT-F
• Discharge Port Thread: 1”-11 NPT-F
• Shaft Diameter: 1.9 in. (40 mm)
• Weight: 157 lbs.
• Dimensions: 20.7” x 14.5” x 9.9”
