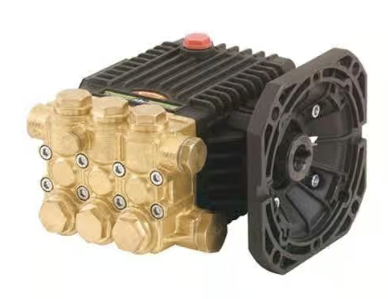

General Pump Plunger Pump, 5/8 In. Hollow Shaft, 0.50 GPM, 2200 PSI Part Number TC1802E175

General Pump TC Series 60 Pump

The General Pump TC1802E175 pump provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase and bearing design with supreme durability and reliability. 5/8" hollow shaft is flanged for direct couple to electric motors (NEMA 56C)


Dimensions: 7.8" x 7.3" x 5.5"


Features

• Compact design
• 5/8" hollow shaft, flanged for direct couple to electric motors (NEMA 56C)
• Oversized bearings for long life
• New generation seal system for longer life
• Forged brass manifold

Specifications

• Maximum Flow: 0.5 GPM
• Maximum Pressure: 2200 PSI
• RPM: 1750 RPM
• Max Temperature: 165° F
• Inlet Port: 1/2-14 BSP-F
• Discharge Port: 3/8-19 BSP-F
