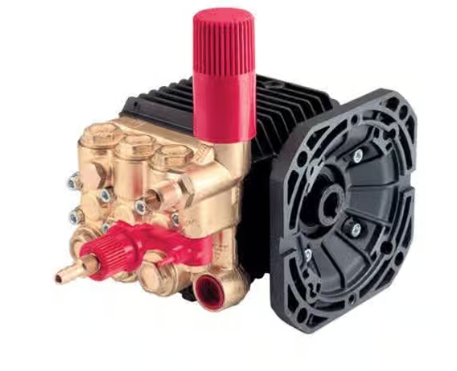

General Pump Plunger Pump With Electric Flange, Pressure Unloader - 1500PSI, 2.8GPM, 3400RPM Part Number TT9071EBFUI

The General Pump TT9071EBFUI Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

This model includes an unloader to maintain consistent pressure and avoid dangerous spiking that may damage the pump or other equipment.

Dimensions: 7.2" x 7.2" x 5.5"

Specifications:

• 1500 PSI maximum pressure
• 125 PSI maximum inlet pressure
• 2.8 GPM maximum flow rate
• 3400 maximum RPM
• 5/8" ( shaft diameter
• 11.2 ounce crankcase capacity
• 3/8" inlet port
• 1/4" discharge port
• 6.6 mm stroke
• 15mm stroke
• 165° degrees Fahrenheit maximum temperature
• Right shaft
• 3' water inlet
• Weight: 12 lbs.

Features:

• Forged brass manifold with exclusive lifetime warranty
• Die-cast annodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning applications
• Comes standard with NEMA 56C electric motor mounting flange
• Includes a pressure unloader

UPC:
