General Pump

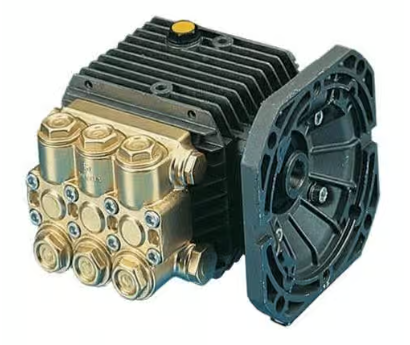

General Pump Plunger Pump With Electric Motor Flange - 2.8GPM, 1500PSI, 3400RPM Part Number TT9071EBF

General Pump Plunger Pump With Electric Motor Flange - 2.8GPM, 1500PSI, 3400RPM Part Number TT9071EBF

Regular price $308.73
Regular price $621.46 Sale price $308.73
Sale Sold out

The General Pump TT9071EBF Pump is a triplex plunger pump with a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Includes a flange that mounts NEMA 56C electric motors with a maximum speed of 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and water circulation applications!


Dimensions: 7.2" x 7.2" x 5.5"


Specifications:

  • 1500 PSI maximum pressure
  • 125 PSI maximum inlet pressure
  • 2.8 GPM maximum flow rate
  • 3400 maximum RPM
  • 5/8" (16mm) shaft diameter - hollow shaft
  • 11.2 ounce crankcase capacity
  • 3/8" inlet port
  • 1/4" discharge port
  • 6.6mm stroke
  • 15mm bore
  • 165° degrees Fahrenheit maximum temperature
  • Right shaft
  • 3' water inlet
  • Weight: 13.2 lbs.

Features:

  • Forged brass manifold
  • Die-cast annodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Comes standard with NEMA 56C electric motor mounting flange
