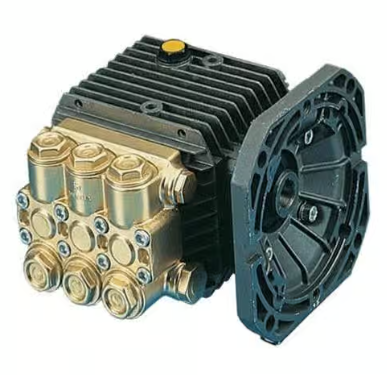

General Pump Plunger Pump With Electric Motor Flange - Left Shaft, 2.8GPM, 1500PSI, 3400RPM Part Number TT9071EBFL

The General Pump TT9071EBFL Pump is a triplex plunger pump with a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Includes a flange that mounts NEMA 56C electric motors with a maximum speed of 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and water circulation applications!

This model has a hollow shaft mounted on the left side of the pump.

Dimensions: 7.2" x 7.2" x 5.5"

Specifications:

• 1500 PSI maximum pressure

• 125 PSI maximum inlet pressure

• 2.8 GPM maximum flow rate

• 3400 maximum RPM

• 5/8" (16mm) shaft diameter - hollow shaft

• 11.2 ounce crankcase capacity

• 3/8" inlet port

• 1/4" discharge port

• 6.6mm stroke

• 15mm bore

• 165° degrees Fahrenheit maximum temperature

• Left shaft

• 3' water inlet

• Weight: 13.2 lbs.

Features:

• Forged brass manifold with exclusive lifetime warranty

• Die-cast annodized aluminum, oil-bath crankcase

• Solid ceramic plungers with continuously lubricated packings

• The original Interpump unitized, stainless steel, K01 inlet and outlet valves

• Ideal for all general cleaning applications

• Comes standard with NEMA 56C electric motor mounting flange
