General Pump
General Pump Plunger Pump With Gas Engine Flange - 2.8GPM, 1500PSI, 3400RPM Part Number TT9071GBF
General Pump Plunger Pump With Gas Engine Flange - 2.8GPM, 1500PSI, 3400RPM Part Number TT9071GBF
Regular price
$308.73
Regular price
$621.46
Sale price
$308.73
Unit price
/
per
Couldn't load pickup availability

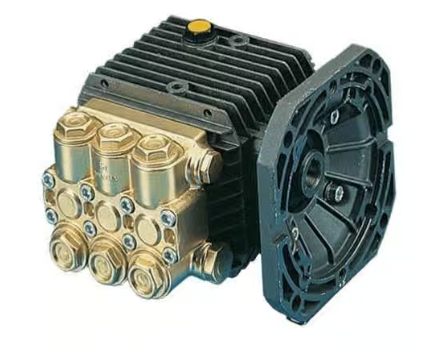

The General Pump TT9071GBF Pump is a triplex plunger pump with a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Includes a flange that can be used with SAE J609 gasoline engines up to 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and water circulation applications!
Dimensions: 7.2" x 7.2" x 5.5"
Specifications:
- 1500 PSI maximum pressure
- 125 PSI maximum inlet pressure
- 2.8 GPM maximum flow rate
- 3400 maximum RPM
- 3/4" shaft diameter
- 11.2 ounce crankcase capacity
- 3/8" inlet port
- 1/4" discharge port
- 6.6 mm stroke
- 15mm bore
- 165° Fahrenheit maximum temperature
- Right shaft
- 3' water inlet
- Weight: 12 lbs.
Features:
- Forged brass manifold
- Die-cast anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with SAE J609 gasoline engine mounting flange
