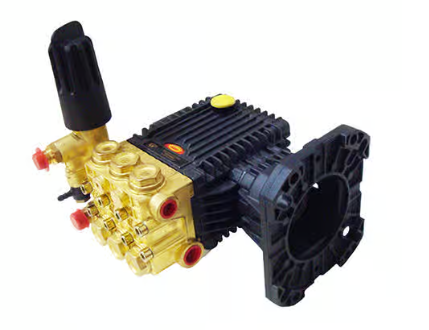

General Pump Plunger Pump With Gas Engine Flange And Pressure Unloader, 4.0 GPM Part Number TX1510G8UIA

The General Pump TX1510G8UIA Pump is part of the TX Series 63 line of plunger pumps. This heavy duty pressure cleaning pump comes with a flange for gasoline engines (SAE J609-B) and a built-in unloader. Use in applications requiring a pump with a 4.0 GPM maximum flow rate and maximum pressure of 3500 PSI.

Specifications:

• Maximum Volume: 4.0 GPM

• Maximum Pressure: 3500 PSI

• Maximum RPM: 3400 RPM

• Inlet Port: 1/2" NPT-M

• Discharge Port: 3/8" NPT-M

• 14 ounce crankcase capacity

• Bore: 15mm

• Stroke: 10mm

• 13 horsepower

• 125 PSI maximum inlet pressure

• 1" hollow shaft

• Flooded maximum inlet vacuum

• Use GP Series 100 oil for best performance

• Weight: 24 lbs.


Features:

• Flanged for direct coupling to SAE J609B gas engines
• Built-in TP unloader

• Fixed downstream injector

• Fully anodized crankcase

• White ceramic plungers

• Oversized bearings

• Sight glass for easier monitoring

• Oversized white bronze connecting rods

• Larger machined crankshaft - increases load potential and reduces fatigue

• Strongest manifold on the market

• Improved low and high pressure seals

• Reinforced valve cap area

• Positive aligning valve cap

• Support ridges and support ribs for piston guides
