General Pump

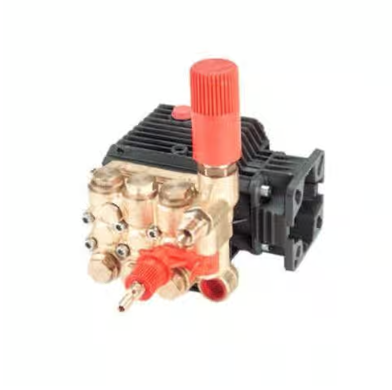

General Pump Plunger Pump With Gas Engine Flange, Unloader And Injector, 2.6 GPM, 2500 PSI, Left Shaft Part Number TP2526J34UIL

General Pump Plunger Pump With Gas Engine Flange, Unloader And Injector, 2.6 GPM, 2500 PSI, Left Shaft Part Number TP2526J34UIL

$346.53
$697.06 $346.53
Sale Sold out

Gas Engine Flanged Plunger Pump

The General Pump TP2526J24UIL Pump is part of the TP Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609), a built-in unloader, and an in-line injector. Use in applications requiring a pump with a 2.6 GPM maximum flow rate and maximum pressure of 2500 PSI. Features left-hand shaft for adaptation into unique spaces.


Specifications:
  • Maximum Volume: 2.6 GPM
  • Maximum Pressure: 2500 PSI
  • Maximum RPM: 3400 RPM
  • Inlet Port: 3/8"-19 BSP-F
  • Discharge Port: 1/4"-19 BSP-F
  • 11.0 ounce crankcase capacity
  • Bore: 15mm
  • Stroke: 6.6mm
  • 125 PSI maximum inlet pressure
  • 3/4" hollow shaft
  • Flooded maximum inlet vacuum
Features:
  • SAE J609 flanged for direct coupling to gas engines
  • Built-in TP unloader
  • Fixed downstream injector
  • Fully anodized crankcase
  • Oversized bearings
  • Sight glass for easier monitoring
  • Larger machined crankshaft - increases load potential and reduces fatigue
  • Strongest manifold on the market
  • Improved low and high pressure seals
  • Reinforced valve cap area
  • Positive aligning valve cap
  • Support ridges and support ribs for piston guides
  • Use GP Series 100 oil for best performance
