General Pump

General Pump Plunger Pump With Left-Hand Shaft - 5.6 GPM, 1700 PSI Part Number TSS1021L

General Pump Plunger Pump With Left-Hand Shaft - 5.6 GPM, 1700 PSI Part Number TSS1021L

Regular price $529.60
Regular price $1,063.24 Sale price $529.60
Sale Sold out

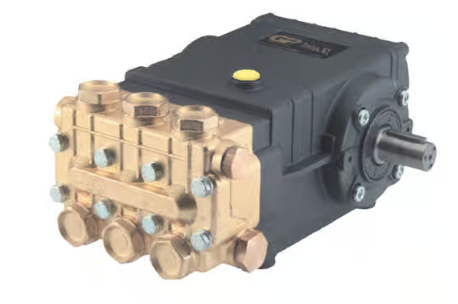

TSS Series 47 Triplex Plunger Pump

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with continuously lubricated packings and oversized connecting rods, for maximum life span. 24 mm solid shaft, located on left side.


Dimensions: 12.6" X 9.2" X 6.9"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 3,500 PSI.
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Solid ceramic plunger
  • Unitized stainless steel inlet and discharge valves
  • Left side shaft

Specifications

@1125 RPM

  • Max Volume: 4.5 GPM
  • Max Discharge Pressure: 3500 PSI

@1450 RPM

  • Max Volume: 5.6 GPM
  • Max Discharge Pressure: 1700 PSI

Common Specs

  • Max Pump Speed: 3500 RPM
  • Max Temperature: 165°F
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
