General Pump Pressure Cleaning T-Series 47 S Pump - 5 GPM, 2500 PSI, 1050 RPM Part Number T1621
General Pump Pressure Cleaning T-Series 47 S Pump - 5 GPM, 2500 PSI, 1050 RPM Part Number T1621
Regular price
$622.70
Regular price
$1,249.40
Sale price
$622.70
Unit price
per
Couldn't load pickup availability

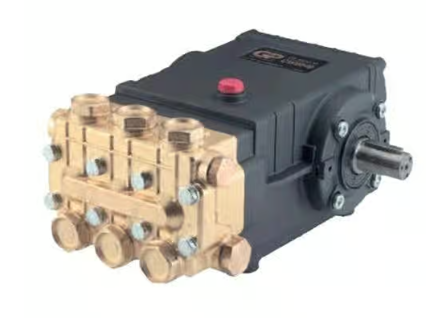

Right Shaft T1621 Pump
The General Pump T1621 Pump is a heavy-duty plunger pump with a forged brass manifold, oversized connecting rods, strong taper roller bearing, and solid ceramic plungers. Features unitized stainless steel inlet and discharge valves. This is a highly preferred pump frame in the pressure cleaning industry!Specifications:
- Maximum Volume: 5.0 GPM
- Maximum Discharge Pressure: 2500 PSI
- Maximum Pump Speed: 1050 RPM
- Maximum Inlet Pressure: 125 PSI
- Plunger Bore: 22mm (.866")
- Plunger Stroke: 16mm (.630")
- Crankcase Oil Capacity: 40.6 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: 24mm (.945")
- Right shaft
- Weight: 32 lbs.
- Dimensions: 12.2" x 9.2" x 6.9"
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
